Not Creepy Elf: Interactive Holiday Animatronic
Project Overview
Not Creepy Elf is an electronic decoration designed to switch between a playful Christmas character and a motion-activated Halloween animatronic. The project combined embedded hardware, firmware, sensing, lighting, and mechanical actuation in a compact prototype.
View project files · Read the final report
System Design
The prototype used a PSoC 4100S Plus microcontroller and a custom PCB designed in Cadence Allegro. Its main subsystems were:
- a PIR sensor for motion detection;
- an analog accelerometer for orientation and movement sensing;
- a temperature sensor using I²C communication;
- a DC motor and motor driver controlled with PWM;
- eye LEDs and a diagnostic LED; and
- Bluetooth Low Energy communication for selecting the operating mode.
When motion was detected, the firmware activated different motor and lighting sequences for the Christmas and Halloween modes. The final implementation also used accelerometer input to vary LED brightness.
My Contributions

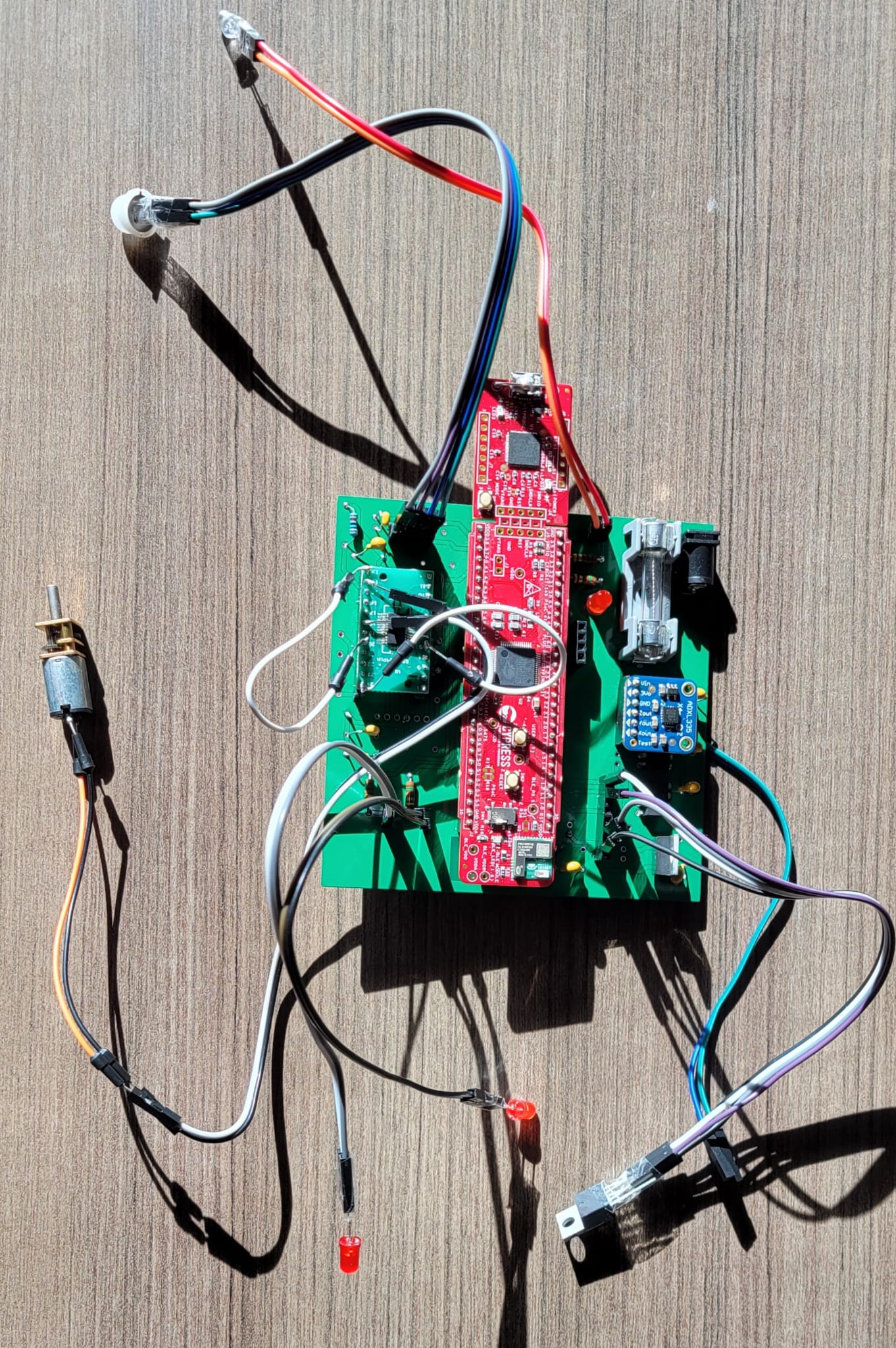

- Designed, assembled, and debugged an individual custom PCB for the shared team architecture.
- Integrated the PSoC, sensor, motor-driver, LED, power, and communication circuits.
- Supported firmware development and hardware bring-up across the sensing and actuation subsystems.
- Helped revise the design when component compatibility and schedule constraints required a stepper-to-DC-motor change and replacement of the planned RFID reader.
Results and Lessons Learned
The final prototype demonstrated motion-triggered behavior, LED control, motor actuation, sensor acquisition, and one-way Bluetooth communication. Measured results included a 5 m detection range, a 0.4 kg prototype mass, and approximately 120° of mechanical motion.

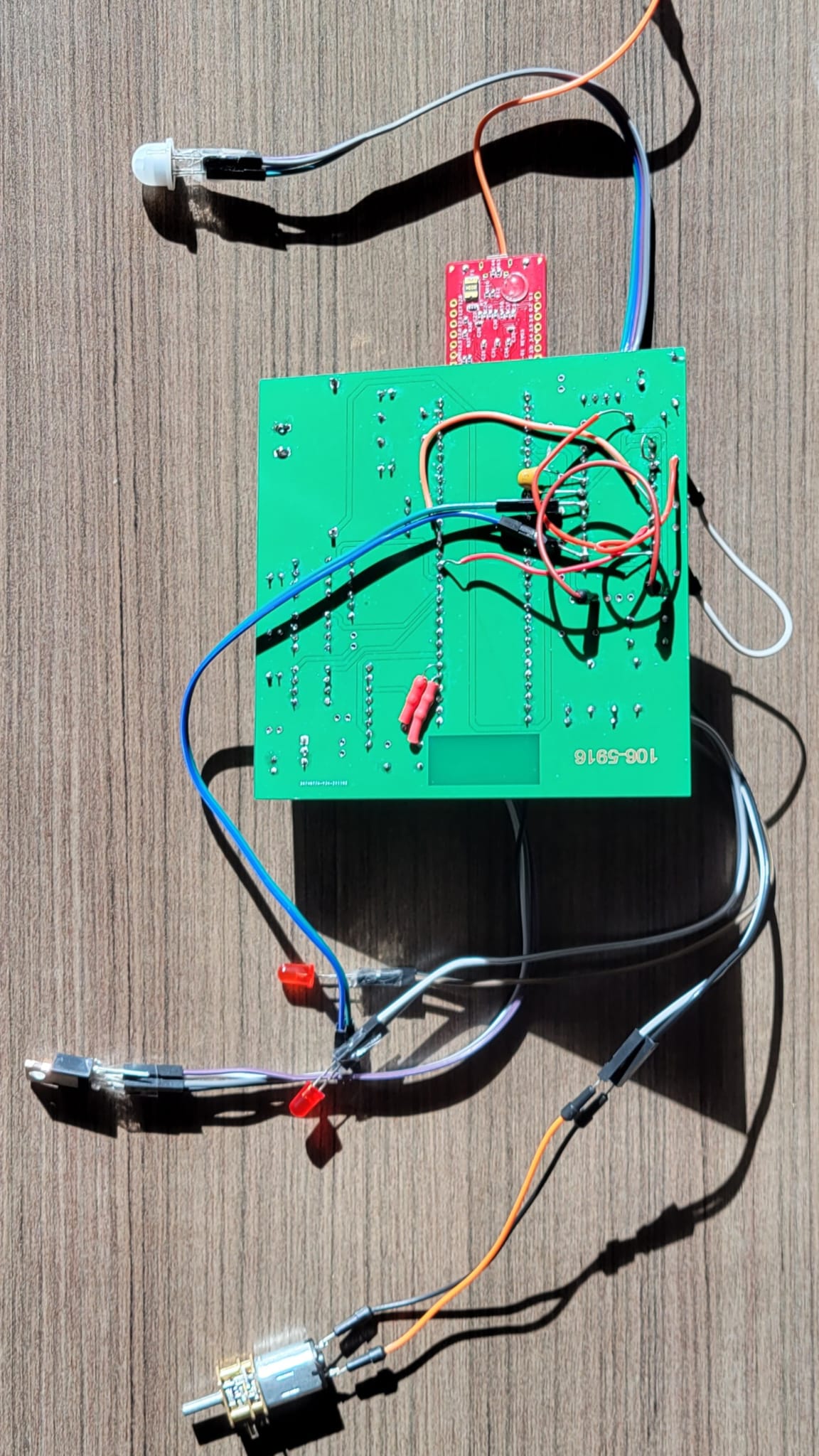

The project also exposed practical PCB-development constraints. Component substitutions required fly-wiring, a voltage-follower redesign for the analog front end, updated LED resistor values, and firmware changes. Those changes reinforced the value of early breadboard validation, careful datasheet review, and designing for testability before fabrication.
Team
Adriana Juarez, Sai Srinivas Tatwik Meesala, Noah Blevins, and Ian Mansfield. Developed for EGR 304 at Arizona State University.
